1. Definition

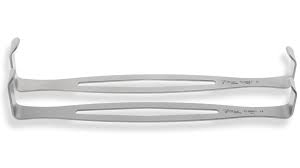

What is an Army-Navy Retractor?
The Army-Navy retractor is a fundamental, handheld surgical instrument primarily designed for the retraction of tissues and organs during a wide variety of surgical procedures. Its name is derived from its historical use and standardization by the United States Army and Navy medical corps, where its reliability and versatility proved invaluable in field hospitals and surgical units. It is a double-ended, manual retractor that belongs to the broader category of surgical retractors, which are essential for creating and maintaining a clear surgical field, allowing surgeons visual and physical access to the operative site.
How it Works
The working principle of the Army-Navy retractor is one of elegant simplicity. It functions as a mechanical lever. A surgical assistant or the surgeon themself places one or both ends of the retractor into the surgical incision. By applying manual force in a direction away from the area of interest, the instrument pulls back layers of tissue (such as skin, fat, and muscle), holding them in place. This action “retracts” the tissue, exposing the underlying anatomical structures for surgical intervention. The depth and nature of retraction can be controlled by the angle and force applied by the user.
Key Components
Despite its simple appearance, the Army-Navy retractor is precisely engineered. Its core components are:
- Handles (Shanks): The central, straight portion of the instrument. It is designed for a secure, comfortable grip, often with a serrated or knurled pattern to prevent slipping, even when wearing bloody gloves.
- Finger Rings: The small, oval or rounded loops at the end of each handle. These provide a secure anchor for the user’s fingers, allowing for controlled application of force and fine adjustments.
- Blades: The working ends of the retractor. A typical Army-Navy has two blades, one on each end, which are usually identical or very similar in size and shape.
- Shape: The blades are typically shallow, curved, or slightly spoon-shaped. This design helps to cradle and hold back tissue without causing unnecessary trauma or snagging.
- Tip: The tip of the blade is blunt, a critical safety feature designed to dissect tissue by separation rather than cutting, minimizing damage to nerves, vessels, and other delicate structures.
2. Uses
Clinical Applications
The Army-Navy retractor’s versatility makes it a “go-to” instrument in numerous procedures:
- General Surgery: Routinely used in appendectomies, cholecystectomies (gallbladder removal), hernia repairs, and exploratory laparotomies for retracting abdominal wall layers.
- Orthopedic Surgery: Essential in joint replacements (hip, knee), fracture repairs (open reduction internal fixation), and spinal procedures for retracting muscle and soft tissue to expose bone.
- Cardiothoracic Surgery: Used in coronary artery bypass grafts (CABG) and valve replacements to hold back chest wall muscles and tissues.
- Vascular Surgery: Employed to expose blood vessels for procedures like bypass grafts or aneurysm repairs.
- Gynecological and Urological Surgery: Used in hysterectomies, prostatectomies, and C-sections for deep and shallow tissue retraction.
- Trauma Surgery: Its robustness and reliability make it ideal for fast-paced trauma surgeries where rapid access to body cavities is required.
- Plastic Surgery: Used in various reconstructive procedures for gentle tissue handling.
Who Uses It
- Surgeons: Use it directly during specific steps of a procedure.
- Surgical Assistants: Often the primary users, tasked with holding the retractor to provide a stable surgical field for the surgeon.
- Scrub Nurses/Nurse Interns: May assist with retraction during certain parts of an operation.
Departments/Settings
- Operating Rooms (ORs) in hospitals and ambulatory surgical centers.
- Emergency Departments for emergency procedures like a trauma laparotomy.
- Specialized Procedure Suites in various surgical disciplines.
3. Technical Specs
Typical Specifications
- Overall Length: Typically ranges from 9 to 10 inches (22 to 25 cm), providing a good balance between leverage and maneuverability.
- Blade Width: Usually between 0.5 to 1 inch (1.3 to 2.5 cm).
- Weight: Approximately 50-100 grams, depending on size and material.
Variants & Sizes
While the classic double-ended design is standard, the main variation lies in size. “Deep” or “Large” variants exist with longer shanks and slightly larger blades for use in larger patients or for deeper cavity retraction. Some specialized versions may have one slightly larger blade and one standard blade.
Materials & Features
- Materials:
- Stainless Steel (AISI 304, 316, 420): The gold standard. Offers excellent strength, corrosion resistance, and can withstand repeated sterilization.
- Tungsten Carbide Inserts: Some premium models have tungsten carbide inserts on the handles. This extremely hard material significantly improves the instrument’s lifespan by reducing wear from repeated use and sterilization.
- German Silver: Used in some economy models, though less durable than stainless steel.
- Features:
- Satfinish/Matte Finish: Reduces glare from overhead surgical lights, preventing surgeon eye strain.
- Highly Polished Blades: Facilitate smoother insertion and removal from tissues.
- Single-Piece Forged Construction: Provides superior strength and durability compared to welded models.
Models
The Army-Navy retractor is a generic instrument, so models are typically defined by manufacturer series rather than distinct names. However, notable product lines come from:
- Jarit / Integra: Known for high-quality, precision-forged instruments.
- Sklar: A trusted name in surgical instruments for over a century.
- B. Braun Aesculap: Offers a range of high-grade retractors.
- Medline: Provides reliable, cost-effective options.
4. Benefits & Risks
Advantages
- Versatility: A single instrument can be used for both deep and superficial retraction in countless procedures.
- Simplicity & Reliability: No moving parts to break; it is a low-tech, high-reliability tool.
- Cost-Effective: Inexpensive to manufacture and purchase, with a long service life if properly maintained.
- Tissue-Friendly: The blunt, smooth blades are designed to minimize trauma during retraction.
- Ease of Use: Requires minimal training for basic application.
Limitations
- User Fatigue: Requires continuous manual force from an assistant, which can lead to fatigue and potential instability in the retraction over long procedures.
- Obstructive: The assistant’s hand holding the retractor can sometimes be physically in the way of the surgeon.
- Limited Exposure: For very large or complex exposures, self-retaining retractors (which hold themselves in place) are often more effective.
Safety Concerns & Warnings
- Excessive Force: Applying too much force can lead to tissue damage, including nerve palises (e.g., lateral femoral cutaneous nerve injury in abdominal surgery) or pressure necrosis.
- Improper Placement: Placing the retractor on a nerve or blood vessel bundle can cause direct injury.
- Slippage: If the blade slips from its position, it can damage surrounding tissues or contaminate the sterile field.
Contraindications
There are no absolute contraindications for the device itself. Its use is contraindicated in any situation where the surgical team is applying it incorrectly, with excessive force, or in an anatomical location where it would cause direct harm to critical structures.
5. Regulation
As a simple, manual, non-invasive surgical instrument, the Army-Navy retractor falls into the lowest risk categories in most global regulatory frameworks.
- FDA Class: Class I. Exempt from premarket notification [510(k)].
- EU MDR Class: Class I (Rule 1 – Non-invasive device). Requires a Technical File and CE marking under MDR.
- CDSCO Category (India): Class A (Low risk).
- PMDA Notes (Japan): Generally classified as a Class I medical device under the Pharmaceutical and Medical Device Act (PMD Act).
- ISO/IEC Standards:
- ISO 13485:2016: Quality Management Systems for Medical Devices.
- ISO 7153-1: Materials for surgical instruments – Part 1: Metals.
- ISO 7740: Instruments for surgery – Scalpels with detachable blades.
6. Maintenance
Proper maintenance is critical for performance and sterility.
- Cleaning & Sterilization: Immediate post-operative cleaning with enzymatic detergents and a soft brush to remove bioburden. Followed by steam sterilization (autoclaving) at standard cycles (e.g., 121°C for 20-30 mins or 134°C for 5-10 mins). Always check manufacturer’s instructions.
- Reprocessing: Inspect for damage (bends, cracks, corrosion) after each cleaning. Lubricate periodically with instrument milk to keep hinges smooth (if applicable) and prevent “sticky” joints.
- Calibration: Not required, as it is a non-measuring, manual instrument.
- Storage: Store in a clean, dry, and temperature-controlled environment. Use designated trays or racks to prevent instruments from knocking against each other, which can cause damage.
7. Procurement Guide
How to Select the Device
Consider procedure volume, surgical specialties, and budget. High-volume ORs should invest in premium, forged stainless steel with tungsten carbide inserts for longevity.
Quality Factors
- Finish: Look for a uniform, satin/matte finish with no burrs or sharp edges.
- Balance: The instrument should feel balanced and comfortable in the hand.
- Spring/Strength: The shanks should have a slight, resilient spring and not feel brittle.
- Manufacturer Reputation: Choose established brands with a history of quality.
Certifications
Look for suppliers that are ISO 13485 certified. For specific markets, ensure the device has CE Marking (EU) or is listed with the FDA.
Compatibility
Fully compatible with all standard sterilization systems and surgical trays. It is a standalone instrument.
Typical Pricing Range
- Economy (Indian/Pakistani OEM): $5 – $15 per unit.
- Mid-Range (Branded): $20 – $40 per unit.
- High-End (Premium Forged, TC Inserts): $50 – $100+ per unit.
8. Top 10 Manufacturers (Worldwide)
| Rank | Manufacturer | Country of Origin | Short Profile & Notable Product Lines |
|---|---|---|---|
| 1 | Jarit / Integra LifeSciences | USA | A leader in surgical instruments, known for precision, durability, and innovation. “Jarit” brand is synonymous with quality. |
| 2 | Sklar | USA | A historic and trusted brand offering a comprehensive range of surgical instruments, including robust retractors. |
| 3 | B. Braun Aesculap | Germany / USA | Global healthcare giant; Aesculap division produces high-precision surgical instruments for demanding procedures. |
| 4 | KLS Martin Group | Germany | A global player specializing in surgical systems, known for high-quality, ergonomic instruments. |
| 5 | Medtronic | USA | Through its surgical solutions division, offers a wide portfolio of reliable surgical instruments. |
| 6 | Symmetry Surgical | USA | Formerly part of Covidien, focuses specifically on surgical instruments and has a strong product line. |
| 7 | CareFusion (BD) | USA | Part of BD, provides a range of surgical instruments often bundled with other procedural products. |
| 8 | Medline Industries | USA | A massive manufacturer and distributor, providing cost-effective and reliable instruments for high-volume settings. |
| 9 | Surgical Holdings | UK | A key UK-based manufacturer and refurbisher of surgical instruments, known for quality and service. |
| 10 | Rudolf Medical | Germany | A German manufacturer with a strong reputation in Europe for producing fine surgical instruments. |
9. Top 10 Exporting Countries (Latest Year)
Based on analysis of global trade data for HS Code 901890 (Instruments and appliances used in medical sciences).
| Rank | Country | Export Market Notes |
|---|---|---|
| 1 | United States | Dominates the high-end and branded instrument market. A leading exporter of premium surgical tools. |
| 2 | Germany | Renowned for precision engineering. German-made instruments are globally sought after for their quality. |
| 3 | Pakistan | A major hub for the manufacturing of cost-effective surgical instruments, particularly from the city of Sialkot. |
| 4 | China | A leading volume manufacturer, producing instruments across all price points, from economy to high-quality. |
| 5 | United Kingdom | Has a strong historical presence in the surgical instrument market, with several legacy manufacturers. |
| 6 | Switzerland | Known for high-precision, specialized, and often expensive surgical instruments. |
| 7 | France | Home to several established medical device companies with significant export volumes. |
| 8 | Mexico | A growing exporter, often serving as a manufacturing base for US companies (nearshoring). |
| 9 | Japan | Exports high-quality, precision instruments, particularly for specialized surgical fields. |
| 10 | Italy | Has a strong manufacturing base for medical devices and surgical instruments. |
10. Market Trends
- Current Global Trends: The market remains stable and essential. There is a growing demand in emerging economies due to increased surgical volumes.
- New Technologies: While the instrument itself is low-tech, advancements are seen in surface coatings (e.g., low-friction, antimicrobial) and the use of single-use, disposable Army-Navy retractors made of medical-grade plastics to combat concerns about reprocessing and prion diseases.
- Demand Drivers:
- Rising global surgical procedure volumes.
- Growth in outpatient ambulatory surgical centers.
- Increasing focus on infection control, driving the disposable segment.
- Future Insights: The Army-Navy retractor will remain a surgical staple. The market will see a bifurcation: continued demand for high-quality, reusable instruments and a growing, albeit smaller, market for cost-effective, reliable single-use options.
11. Training
Required Competency
Minimal for basic use, but significant for optimal use. Users must understand surgical anatomy to know what to retract, how to retract it, and how much force to apply.
Common User Errors
- “Hanging on” the Retractor: Leaning or putting full body weight on the instrument, applying dangerous levels of force.
- Inconsistent Retraction: Frequently shifting position, disrupting the surgeon’s focus and the surgical field.
- Poor Communication: Not informing the surgeon when fatigue sets in or when visibility is compromised.
- Using the Wrong End: Using the finger ring end in the wound, which can cause significant tissue damage.
Best-Practice Tips
- Communicate: Inform the surgeon if your arm is getting tired.
- Follow the Lead: Let the surgeon guide the initial placement of the retractor.
- Use a Stable Stance: Stand in a comfortable, balanced position to maintain steady retraction.
- Think Anatomically: Be aware of the structures beneath your retractor blade.
12. FAQs
1. Why is it called an Army-Navy retractor?
It was standardized and widely used by the medical corps of the US Army and Navy, especially during World War II, due to its reliability and versatility in field hospitals.
2. Can it be used as a blunt dissector?
Yes, its blunt tip is often used by surgeons to gently separate tissue planes (blunt dissection) before being used for retraction.
3. What’s the difference between an Army-Navy and a Richardson retractor?
A Richardson retractor typically has a broader, deeper, and more curved single blade, designed for retracting heavier tissues in deep cavities. The Army-Navy is generally smaller and more versatile for various tissue depths.
4. Is it reusable or single-use?
Primarily designed as a reusable instrument. However, single-use disposable versions made of plastic are available.
5. How do I prevent it from slipping during surgery?
A proper grip, correct blade placement behind a firm tissue layer, and a steady hand are key. The matte finish on the handles also aids in grip.
6. What does “TC” mean on the handle?
It stands for Tungsten Carbide, a super-hard material used in inserts on the finger rings to dramatically increase the instrument’s lifespan.
7. Can the blades become sharp over time?
Yes, with repeated use and sterilization, the blunt tips can become slightly worn or burred. Regular inspection and periodic re-finishing by a qualified instrument repair service are necessary.
8. How many should a standard surgical tray have?
Most general surgical trays will have at least 2-4 Army-Navy retractors to allow for multi-directional retraction.
13. Conclusion
The Army-Navy retractor stands as a testament to the enduring value of simple, effective design in the high-tech world of modern surgery. Its versatility, reliability, and cost-effectiveness have secured its place as an indispensable tool in operating rooms across the globe. While new technologies emerge, the fundamental need to create a clear surgical field remains, and the Army-Navy retractor fulfills this need with unparalleled proficiency. Understanding its proper use, maintenance, and procurement is fundamental for any healthcare institution and professional involved in surgical care.
14. References
- U.S. Food and Drug Administration (FDA). (2023). Classification of Surgical Instruments.
- European Commission. (2017). European Medical Device Regulation (MDR) 2017/745.
- Central Drugs Standard Control Organization (CDSCO). (2023). Medical Device Rules.
- International Organization for Standardization (ISO). (2016). ISO 13485:2016 – Medical devices — Quality management systems.
- Geis, W. P. (Ed.). (2021). Surgical Instrumentation: An Interactive Approach. Elsevier Health Sciences.
- Rothrock, J. C. (Ed.). (2019). Alexander’s Care of the Patient in Surgery. Elsevier Health Sciences.
- UN Comtrade Database. (2023). Trade data for HS Code 901890.
