1. Definition
What is a Senn Retractor?
The Senn Retractor is a familiar, handheld, double-ended surgical instrument primarily used for retracting tissues, muscles, and skin during a wide variety of surgical procedures. Its simple yet effective design has made it a staple in operating rooms for decades. Its primary function is to hold back the edges of a surgical incision or wound, providing the surgeon with a clear view of and access to the underlying anatomical structures.
How it works
The working principle of the Senn retractor is purely mechanical and leverages the concept of leverage and counter-traction. A surgical assistant or the surgeon themself holds the instrument and manually applies force to hook or blade end, pulling skin, subcutaneous fat, or superficial muscles away from the surgical field. This action exposes deeper tissues, prevents surrounding structures from obscuring the view, and minimizes inadvertent injury to tissues not directly involved in the procedure.
Key Components

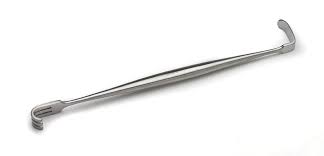

The Senn retractor is a single-piece instrument with two distinct ends:
- The Maltese Cross/Cat’s Paw End: This end is flat and bent at a 90-degree angle, forming a four-pronged, rake-like design. The prongs are blunt to prevent tearing or snagging on delicate tissues. This end is typically used for retracting larger surface areas of skin and superficial tissues where a more secure grip is needed.
- The Sharp/Fenestrated Blade End: This end features a flat, slender, and fenestrated (having a small window or opening) blade that ends in a slight curve. The fenestration reduces the instrument’s overall weight and allows for the suturing of tissues over the retractor if needed. The tip of this blade can be sharp or blunt, with the sharp variant used for engaging slightly deeper or more resilient tissues.
- The Shank/Handle: This is the central part of the instrument that the user grips. It is designed to provide a comfortable, non-slip hold, allowing for precise control and sustained pressure during surgery.
2. Uses
Clinical Applications
The Senn retractor is versatile but is predominantly used in “smaller” or more superficial surgical sites. Its common applications include:
- Orthopedic Surgery: Crucial in procedures on the hand, foot, knee, and shoulder for retracting skin and soft tissues to expose bones, tendons, and ligaments.
- Plastic and Reconstructive Surgery: Used in skin grafts, scar revisions, and other cosmetic procedures where delicate retraction is paramount to avoid tissue trauma.
- General Surgery: Employed in minor procedures such as excising lipomas, sebaceous cysts, and other superficial masses.
- Podiatric Surgery: A mainstay in foot and toe surgeries for wound edge retraction.
- Vascular Surgery: Used in procedures like saphenous vein harvesting for coronary artery bypass grafting.
- Biopsy Procedures: Helps in retracting the skin edges during excisional or incisional biopsies.
Who uses it
The primary users are:
- Surgeons: Across various specialties like orthopedics, plastics, and general surgery.
- Surgical Assistants: Often the individual tasked with holding retractors to provide the surgeon with a stable field.
- Physician Assistants (PAs) and Nurse Practitioners (NPs): In minor procedure rooms or clinics.
Departments/Settings
- Operating Rooms (OR)
- Minor Procedure Rooms in Hospitals and Clinics
- Ambulatory Surgical Centers (ASCs)
- Emergency Departments (for minor surgical procedures)
- Dermatology and Podiatry Clinics
3. Technical Specs
Typical Specifications
Being a manual instrument, its specifications are related to its physical dimensions.
- Overall Length: Typically ranges from 15 cm (6 inches) to 18 cm (7 inches), making it ideal for confined surgical sites.
Variants & Sizes
The main variants are defined by the blade end:
- Senn Retractor (Sharp): Features a pointed tip on the blade end for engaging tissues more firmly.
- Senn Retractor (Blunt/Dull): Features a rounded, non-pointed tip on the blade end to minimize the risk of accidental puncture or tissue injury. This is often preferred in more delicate surgeries.
- Mini Senn: A smaller version used in pediatric surgery or extremely delicate procedures like ophthalmic or microsurgery.
Materials & Features
- Materials: Almost universally made from Martensitic Stainless Steel (e.g., Grade 410 or 420). This material provides excellent strength, corrosion resistance, and the ability to withstand repeated sterilization cycles.
- Features:
- Double-ended design offers two retraction options in one instrument.
- Non-slip grip patterns are often machined into the shank.
- Fenestrated blade reduces weight and allows for suture pass-through.
- Available in both matt (satin) and polished finishes.
Models
As a fundamental instrument, it is often part of a manufacturer’s general surgical line rather than having distinct “models.” It is commonly found in “Minor Procedure Sets” and “Orthopedic Soft Tissue Sets.”
4. Benefits & Risks
Advantages
- Simplicity: No complex parts; easy to understand and use.
- Versatility: Two retractor styles in one instrument.
- Cost-Effective: Inexpensive to manufacture and purchase.
- Durability: With proper care, it can last for decades.
- Precise Control: Allows the assistant to feel the amount of tension being applied, reducing the risk of over-retraction.
Limitations
- Manual Operation: Requires a dedicated assistant, occupying a pair of hands.
- Fatigue: Prolonged procedures can lead to hand fatigue for the holder, potentially causing inconsistent retraction.
- Superficial Use: Generally not suitable for retracting deep abdominal or thoracic cavities; larger retractors (e.g., Thompson, Richardson) are used for that purpose.
- Tissue Trauma Risk: If used improperly or with excessive force, the sharp ends can lacerate or crush tissues.
Safety Concerns & Warnings
- Puncture Hazard: The sharp ends pose a risk of needlestick-like injuries to the surgical team if mishandled.
- Tissue Damage: Aggressive retraction can lead to neuropraxia (nerve stretch injury), hematoma, or skin edge necrosis.
- Inadvertent Injury: The retractor can slip out of position, potentially injuring critical structures nearby.
Contraindications
There are no strict “contraindications” for a tool, but its use is relatively contraindicated in situations where:
- Retraction of very deep organs is required.
- The surgical field is so small that a larger, self-retaining retractor would be safer and more effective.
- The patient has exceptionally fragile skin or tissues (e.g., in certain connective tissue disorders), where even gentle raking could cause damage.
5. Regulation
The Senn retractor is typically classified as a low-risk device globally.
- FDA Class: Class I. Exempt from premarket notification (510(k)) but subject to general controls (registration, listing, GMP).
- EU MDR Class: Class I (non-sterile) or Class Is (provided sterile). As a simple, manual instrument, it falls under the lowest risk category.
- CDSCO Category (India): Class A. Low-risk devices.
- PMDA Notes (Japan): Generally classified as a Class I “General Medical Device.”
- ISO/IEC Standards:
- ISO 13485: Quality Management Systems for Medical Devices.
- ISO 7153-1: Materials for surgical instruments – Part 1: Metallic materials.
- IEC 62366-1: Application of usability engineering to medical devices.
6. Maintenance
Cleaning & Sterilization
- Point-of-Use Wipe: Immediately after surgery, wipe with a sterile water-soaked sponge to remove gross debris.
- Cleaning: Use enzymatic detergents and a soft brush to clean all surfaces, paying special attention to the prongs and fenestrations. Ultrasonic cleaners are highly effective.
- Rinsing & Drying: Rinse thoroughly with distilled water to remove detergent residues and dry completely to prevent spotting and corrosion.
- Sterilization: The standard method is steam sterilization (autoclaving) at 132-135°C (270-275°F) for a 3-10 minute exposure time. It can also be sterilized using chemical sterilants (e.g., glutaraldehyde) or low-temperature methods (e.g., Hydrogen Peroxide Plasma) for heat-sensitive instruments.
Reprocessing
It is a reusable device. The reprocessing cycle (Cleaning -> Inspection -> Packaging -> Sterilization -> Storage) must be strictly followed for every use.
Calibration
As a non-mechanical, non-powered instrument, the Senn retractor does not require calibration.
Storage
- Store in a clean, dry, and climate-controlled environment.
- Should be stored in protective trays or cassettes to prevent damage to the delicate tips and prongs.
- Avoid overcrowding in storage trays to prevent instruments from knocking against each other.
7. Procurement Guide
How to Select the Device
- Identify Need: Determine the primary surgical specialty (e.g., Ortho vs. Plastics) to choose between sharp or blunt variants.
- Assess Ergonomics: The instrument should feel balanced and comfortable in the hand.
- Evaluate Finish: A satin (matt) finish is preferred by many as it reduces glare under bright OR lights.
Quality Factors
- Material Integrity: Ensure it is made from high-grade, medical stainless steel.
- Craftsmanship: Check for smooth, even finishes; absence of burrs, cracks, or pits; and symmetrical, well-aligned prongs.
- Durability: The instrument should not bend under normal retraction pressure.
Certifications
Look for manufacturers that are ISO 13485 certified and whose products carry the CE Mark (for EU) and are FDA Registered (for USA).
Compatibility
It is a standalone manual instrument with no electronic or mechanical compatibility requirements. It is, however, “compatible” with standard sterilization systems and storage trays.
Typical Pricing Range
The Senn retractor is a low-cost instrument. The typical price range for a single unit is $15 to $50 USD, depending on the manufacturer, quality, and vendor.
8. Top 10 Manufacturers (Worldwide)
| Rank | Manufacturer | Country of Origin | Short Profile & Notable Lines |
|---|---|---|---|
| 1 | Integra LifeSciences | USA | A global leader, known for the Miltex line of precision surgical instruments. |
| 2 | B. Braun | Germany | Offers a comprehensive portfolio under the Aesculap brand, known for high quality. |
| 3 | KLS Martin Group | Germany | A family-owned company renowned for innovation and quality in surgical instruments. |
| 4 | Stille | Sweden | Acquired by Stryker, known for legendary craftsmanship and durability. |
| 5 | Sklar Instruments | USA | A trusted name for over 125 years, providing a wide range of surgical instruments. |
| 6 | Cardinal Health | USA | A major distributor and supplier of medical products, including its own instrument lines. |
| 7 | Medline Industries | USA | A massive private manufacturer and distributor offering cost-effective solutions. |
| 8 | Rudolf Medical GmbH | Germany | A specialist manufacturer of surgical instruments with a strong focus on quality. |
| 9 | Surtex | United Kingdom | A leading British manufacturer and global supplier of surgical instruments. |
| 10 | Fairmont Medical | Australia | A leading ANZ supplier with its own brand of surgical instruments. |
9. Top 10 Exporting Countries (Latest Year)
Based on analysis of trade data for “Hand-held surgical instruments”.
| Rank | Country | Brief Notes on Export Market |
|---|---|---|
| 1 | Germany | The global gold standard for precision and quality; commands premium prices. |
| 2 | United States | Home to major players like Integra; strong domestic and international presence. |
| 3 | Pakistan | A major hub for high-quality, handcrafted surgical instruments (Sialkot city). |
| 4 | China | A leading volume producer, offering highly competitive pricing. |
| 5 | United Kingdom | Hosts specialized manufacturers with a long history of surgical innovation. |
| 6 | Switzerland | Known for high-precision instruments, often in specialized surgical fields. |
| 7 | France | Has several established manufacturers serving the European and global markets. |
| 8 | Italy | Known for fine craftsmanship, particularly in orthopedic and plastic surgery tools. |
| 9 | Japan | Produces high-quality instruments primarily for its advanced domestic market. |
| 10 | Spain | An important European manufacturer with a growing export footprint. |
10. Market Trends
Current Global Trends
- Market Consolidation: Large players (like Stryker, B. Braun) are acquiring specialized instrument makers.
- Cost-Pressure: Rising healthcare costs are driving demand for cost-effective, high-durability instruments from both premium and value-based manufacturers.
New Technologies
- Enhanced Ergonomics: Development of instruments with textured, contoured, or lightweight polymer handles to reduce surgeon fatigue.
- Special Coatings: Titanium Nitride (TiN) coatings, which are gold in color, are being applied to increase surface hardness and corrosion resistance, extending instrument life.
Demand Drivers
- Rising volume of outpatient and ambulatory surgeries.
- Growing number of orthopedic and plastic surgery procedures globally.
- The ongoing need for reliable, fundamental surgical tools in developing healthcare systems.
Future Insights
While robotic and powered surgery advance, the simple, reliable, and cost-effective Senn retractor will remain irreplaceable for a vast range of open surgical procedures. Its future lies in incremental improvements in ergonomics and materials science rather than radical redesign.
11. Training
Required Competency
Minimal formal training is required. Competency involves:
- Understanding the basic anatomy of the surgical site.
- Knowing how to hold the instrument securely.
- Learning to apply steady, lateral traction without digging into or crushing tissues.
Common User Errors
- “Hooking and Forgetting”: Applying retraction and then not paying attention, allowing the retractor to slip or drift.
- Excessive Force: Using too much force, leading to tissue trauma or crushing.
- Obstructing the View: Placing the retractor in a way that blocks the surgeon’s line of sight.
- Using the Wrong End: Using the sharp blade where the blunt rake would be more appropriate.
Best-Practice Tips
- Communicate: The assistant should constantly communicate with the surgeon about the field of view.
- Use a Malleable Blade: For certain procedures, a malleable retractor might be a better choice to conform to the anatomy.
- Inspect Before Use: Always check the instrument for damage (e.g., bent prongs) that could injure the patient.
12. FAQs
1. What’s the difference between a Senn and an Army-Navy retractor?
An Army-Navy retractor is also double-ended, but both ends are identical, shallow, curved blades. It’s used for retracting in deeper wounds, while the Senn is for more superficial use and offers a rake option.
2. Can a Senn retractor be used as a self-retaining retractor?
No. It is strictly a hand-held retractor and requires manual operation throughout the procedure.
3. Sharp vs. Blunt Senn – which is better?
There’s no universal “better.” The sharp version provides more purchase on tissue, while the blunt version is safer for delicate tissues. The choice is surgeon- and procedure-dependent.
4. How do I know if my Senn retractor is damaged and needs replacing?
Look for bent prongs, a loose or wobbly handle, deep pits from corrosion, or cracks. Any of these are grounds for removal from service.
5. Is it autoclavable?
Yes, it is designed for repeated steam autoclaving.
6. Why is it sometimes called a “cat’s paw” retractor?
Because the rake end resembles a cat’s paw.
7. What is the proper way to hand a Senn retractor to a surgeon?
Hold the shank in your palm and present the handle towards them, so they can grasp it without reorienting it.
8. Can it be used in laparoscopic surgery?
No. Laparoscopic surgery uses long, slender instruments inserted through ports. The Senn is for open surgeries.
13. Conclusion
The Senn retractor exemplifies the principle that the most effective tools are often the simplest. Its enduring presence in the operating room is a testament to its fundamental utility, versatility, and reliability. While surgical technology continues to evolve at a rapid pace, this humble instrument remains an indispensable part of the surgeon’s armamentarium for a wide array of procedures. Understanding its proper use, maintenance, and procurement ensures that this classic tool will continue to contribute to successful patient outcomes for years to come.
14. References
- U.S. Food and Drug Administration (FDA). (2023). Classification of Surgical Instruments.
- European Commission. (2017). European Medical Device Regulation (MDR) 2017/745.
- Central Drugs Standard Control Organization (CDSCO). (2020). Medical Device Rules.
- Association of periOperative Registered Nurses (AORN). (2023). Guidelines for Perioperative Practice.
- ISO 13485:2016. Medical devices — Quality management systems.
- Surgical Instrument Maintenance and Repair Guides – KLS Martin, Integra Miltex.
- Global trade data analysis from sources aligned with UN Comtrade methodology.
